MARITECH MP Series
| Model | Type | Flow Rate | Connection Size | Plate Materials | Gasket Materials | Ideal Applications |
|---|---|---|---|---|---|---|
| MP10-S | Standard | up to 12 m³/h | DN32 (1¼”) | SS316L / Titanium | NBR / EPDM / Viton | HVAC, engine cooling |
| MP15-E | Enhanced Surface | 12–30 m³/h | DN50 (2″) | SS316L / Titanium | NBR / EPDM / Viton | Fuel oil heating, boiler feedwater |
| MP30-C | Compact | 25–50 m³/h | DN65 (2½”) | SS316L / Titanium | NBR / EPDM / Viton | Limited space installations |
| MP50-S | Standard | 40–75 m³/h | DN80 (3″) | SS316L / Titanium | NBR | Central cooling water systems |
| MP75-H | High Pressure | 60–100 m³/h | DN100 (4″) | SS316L / Titanium | Viton / EPDM-HT | Oil cooling, thermal recovery |
| MP120-E | Enhanced Surface | 100–180 m³/h | DN150 (6″) | SS316L / Titanium | Viton / EPDM-HT | High-capacity seawater/process cooling |
| MP200-E | Enhanced Surface | 180–300 m³/h | DN200 (8″) | SS316L / Titanium | EPDM-HT / Viton | District cooling, heavy-duty exchangers |
| MP250-H | High Pressure | 300–400 m³/h | DN250 (10″) | SS316L / Titanium | Viton / EPDM | LNG auxiliary systems, industrial loops |
| MP300-S | Standard Large | 400–500+ m³/h | DN300 (12″) | SS316L / Titanium | EPDM-HT / Viton | Main central cooling units, condensers |
| MP350-E | Enhanced XL | 500–650+ m³/h | DN350 (14″) | SS316L / Titanium | Viton / EPDM-HT | Floating plants, megastructure cooling |
MARITECH MP SERIES

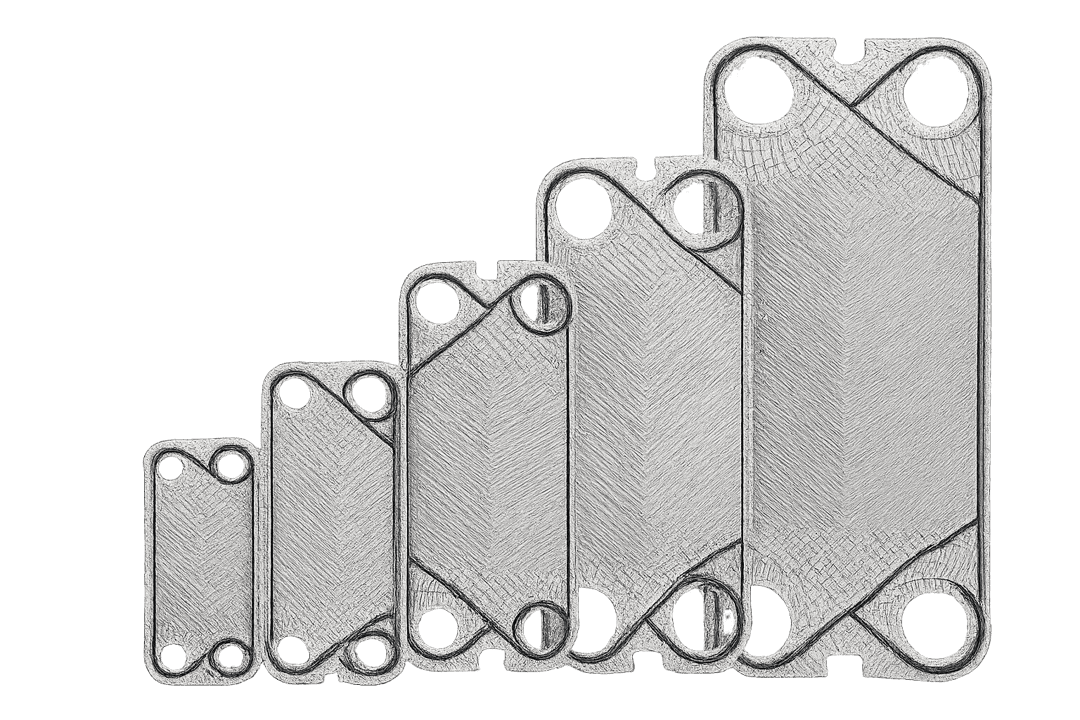

Developed by MARITECH engineers, the MP Series offers complete plate heat exchanger units covering flow rates from 12 m³/h to 650+ m³/h. Each model is optimized for performance, pressure class, space, and thermal behavior — with plates in SS316L or Titanium, and gaskets in NBR, EPDM, Viton, or EPDM-HT. Ideal for marine and industrial duty, including central cooling, oil recovery, district heating, and compact applications.
Whether you’re replacing an OEM unit, repairing or upgrading your system, MARITECH makes it easy to cross-reference your existing model and find a compatible or enhanced alternative.
Select your current model or OEM reference, and we’ll match it with the compatible MARITECH solution
Not sure which model you have? Our team can identify your unit from a photo, drawing, or nameplate. Upload directly and we’ll guide you.
